Kawartha Vinyl Inc.

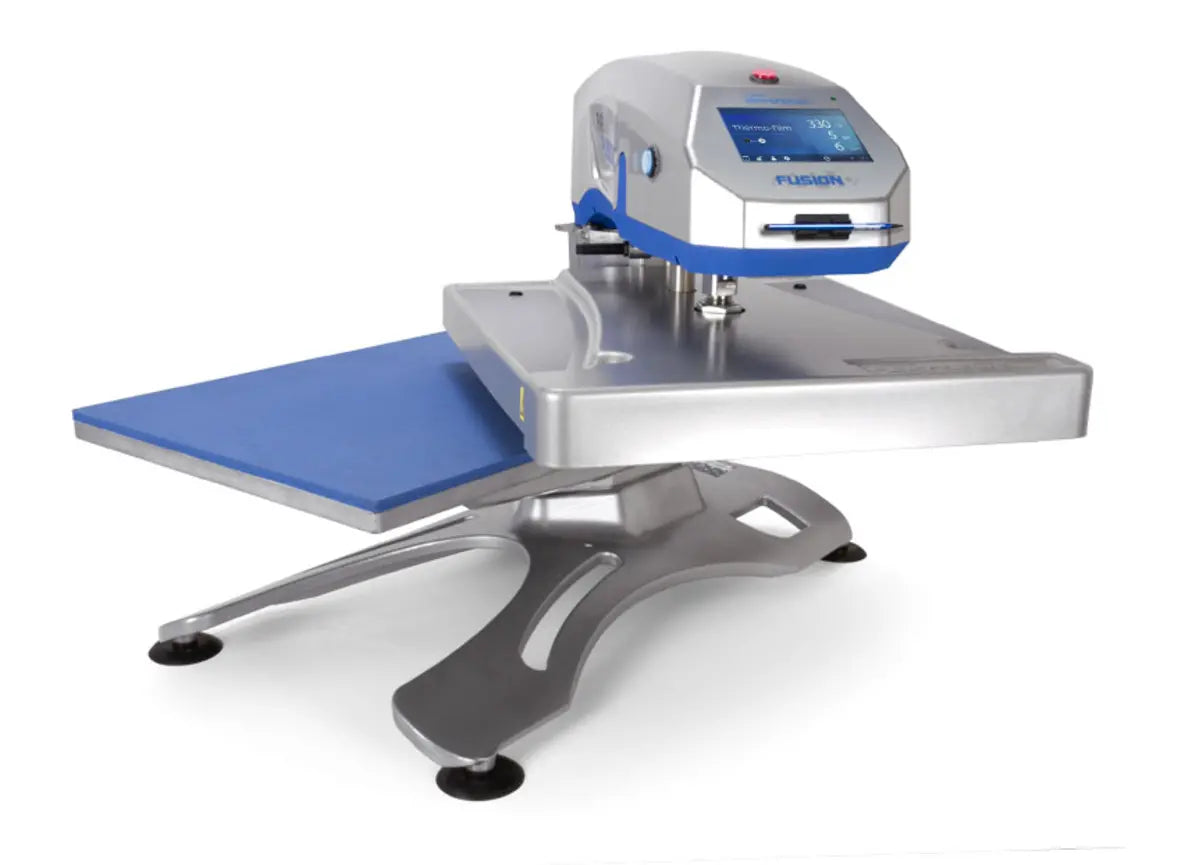

Hotronix® Air Fusion IQ® Heat Press

Regular price $6,275.00 CAD
Regular price Sale price $6,275.00 CAD
Sale Sold out
Shipping calculated at checkout.
Style
*PROCESSING TIME 2-4 BUSINESS DAYS*
The Air Fusion IQ® Heat Press makes heat printing a breeze. This digital heat transfer machine features air-powered operation, a heat-free workspace, and a touch-screen interface complete with stored application instructions and self-diagnostic capabilities. Through an added air compressor and two-button functionality, the Air Fusion® IQ reduces operator fatigue and is perfect for producing high volume custom apparel orders.
Innovation meets application with IQ® Heat Presses. Register your Air Fusion IQ® Heat Press with Hotronix® to access the Online Portal where you can manage users, generate usage reports, and troubleshoot technical issues.

Details

  • Air power reduces operator fatigue in high-volume shops
  • Hands-free auto-swing creates a heat-free workspace
  • Available in Pedestal and Table Top models
  • Powered by an air compressor (not included)

 Additional Features

  • Online access to reporting, including total impressions, active/idle time, and average cycle time.
  • Self-diagnostics help with troubleshooting and maintenance.
  • 16" x 20" upper platen.
  • Stores hundreds of application settings.
  • Adjustable stand creates an ergonomic workspace for multiple users.
  • Threadability™ increases production – load garments once and easily rotate from front to back.
  • Exclusive Touch Screen Controller with new Multi-swipe gestures.
  • Data interface port for software upgrades.
  • Live digital time, temperature, and pressure readout.
  • Energy-saving 4 hr sleep mode.
  • Production cycle counter.
  • UL/ULC/CE/RoHS compliant.
  • Electrical Options:
    120 v; 15 amps; 1800 w
    240 v; 7.5 amps; 1800 w
  • Must have designated circuit breaker
  • 3/4 inch heat platen with fast recovering heater technology.
  • Die pressure cast 356 aluminum corrosion-free framework.

*Requires air compressor (not included) with minimum:
1/2 horsepower and 2.5 gallon hold tank. Uses 2.3 CFM.
  • Multiple time and pressure settings make application a breeze.
  • Program and store frequently used applications.
  • Innovative EZ-On platen design eliminates the need for pillows or pads.
  • 120 PSI for heavy pressure application.
  • User-safe two-hand operation.
  • Digital read-outs.
  • Optional smaller interchangeable platens
  • Proudly made in the USA.
  • Premier warranty.
  • Actual Weight: 152 lbs
  • Shipping Weight: 245 lbs
  • Dimensions: 40" x 32" x 57"
  • Shipping Dimensions: 40" x 48" x 58"

Warranty

  • Lifetime Warranty on Heating Element
  • 5 yr on Framework
  • 2 yr on Circuit board
  • 1 yr parts/labor



Air Fusion
Air Fusion heat press machine with adjustable height stand
  • Tapered roller bearings with progressive stop dampers for smooth swing operation.
  • The industry's only adjustable-height stand.

Pedestal Air Fusion - $6,950

Specifications:
Actual Dimensions: 40" x 32" x 57"
Actual Weight: 152 lbs
Shipping Dimensions: 48" x 40" x 58"
Shipping Weight: 245 lbs

Note: Actual Dimensions reflect stand at maximum height.

Operators Manaual
Download the Hotronix Air Fusion Operators Manual.

Table Top Air Fusion
Table Top version of the Air Fusion heat press

With the same great features, including touch screen controller, semi-automatic operation, and Threadability™, the Table Top Air Fusion harnesses the power and convenience of the Air Fusion into a space-saving unit.

Table Top Air Fusion - $6,275

Specifications:
Actual Dimensions: 34" x 18" x 24"
Actual Weight: 126 lbs
Shipping Dimensions: 37" x 24" x 27"
Shipping Weight: 154 lbs

Hotronix Premier Warranty

  • Lifetime Warranty on Heating Element
  • 5 yr on Framework
  • 2 yr on Circuit board
  • 1 yr Parts/Labor
