Kawartha Vinyl Inc.
Hotronix® 360 IQ® Hat Heat Press
Regular price
$2,495.00 CAD
Regular price
Sale price
$2,495.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
*PROCESSING TIME 2-4 BUSINESS DAYS*
Now you can print many types and sizes of hats with just one platen. The Hotronix® 360 IQ® Hat Press with patented Dual Silicone Platen™ technology is engineered to solve all your cap printing problems.
- Eliminates creasing
- Eliminates scorching
- Print on all sides of the hat
- Control upper and lower heat independently for accurate application
- Bonds adhesives from underneath
- Includes 2 foam cover pads for applying thick or dimensional items
Details
Dual Silicone™ Platen
Patented dual silicone platen, with an elliptical design, adapts to the logo’s thickness and shape to give equal pressure over the entire cap guaranteeing adhesion with no lines, marks or scorching.Print Any Patch, Transfer, or Emblem
Bottom-heat printing is crucial for some types of premium, dimensional hat graphics, including FlexStyle, Leather Patches and 3D Embroidery. There are 2 foam cover pads included with different thicknesses for heat application.Hotronix IQ Ease of Use
This heat press features the Hotronix IQ™technology which allows you to track productivity, program the machine for specific jobs and much more.- Digital time, temperature, and pressure readouts
- IQ technology allows cloud-based tracking of machine and operator
- Actual Weight: 44 lbs
- Shipping Weight: 50 lbs

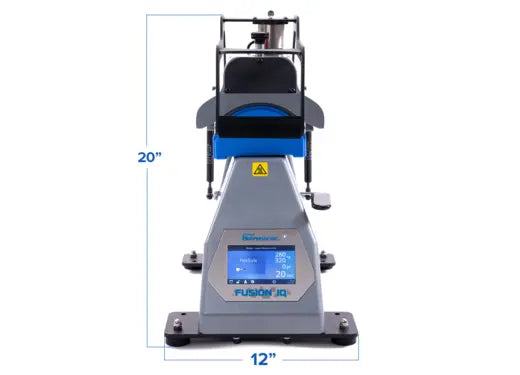

- Dimensions (closed): 18" x 12" x 20"
- Dimensions (open): 18" x 12" x 32"
- Electrical Options: 120 v; 10 amps; 800 w | 240 v; 5 amps; 800 w
- Must have designated circuit breaker
- Heat Printing Area: Recommended ideal max height of 2.25" with an absolute max of 2.5" and recommended width of 5.5" with an absolute max of 5.75"
Warranty
- Lifetime Warranty on Heating Element
- 5 yr on Framework
- 2 yr on Circuit board
- 1 yr parts/labor
Operators Manual
Download Hotronix 360 IQ Hat Press Operators Manual
