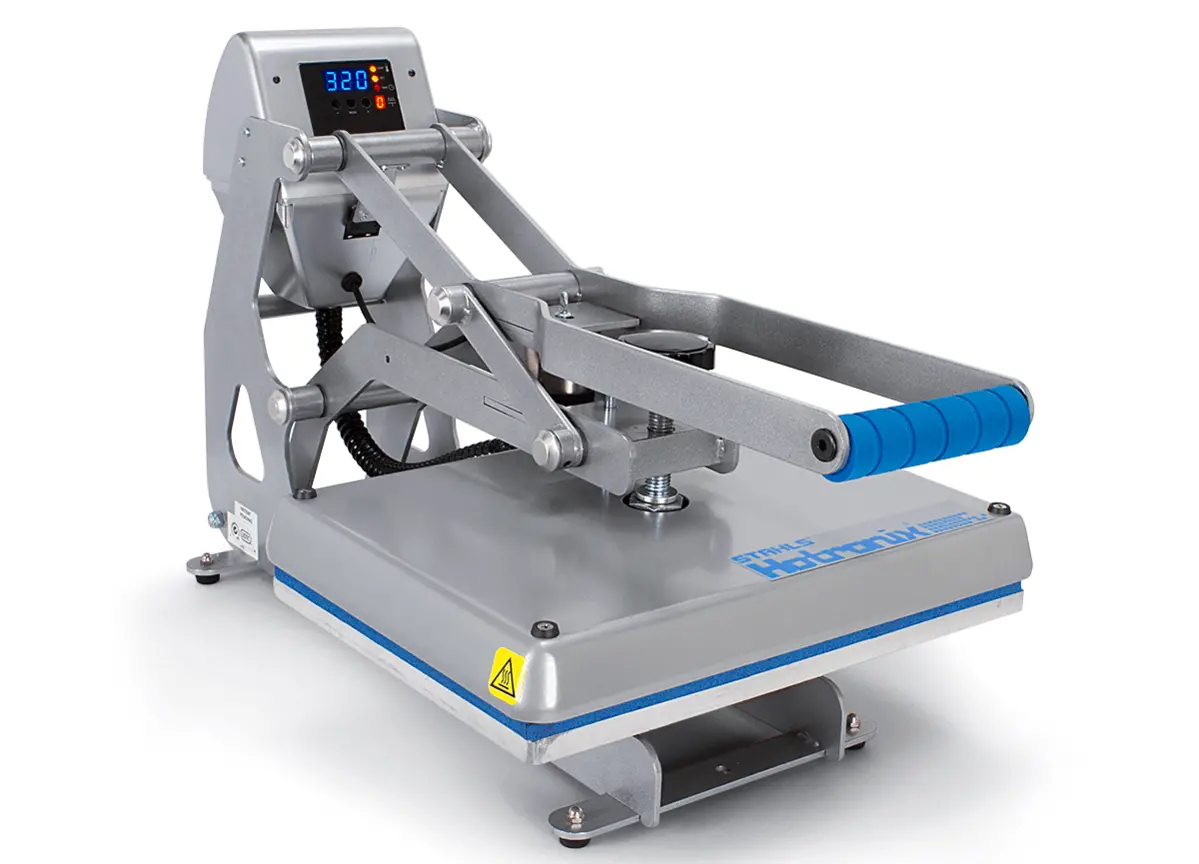

Hotronix® Auto Clam Heat Press

$1,755.00 CAD
$1,755.00 CAD
Sale Sold out
Shipping calculated at checkout.
Size

*PROCESSING TIME 2-4 BUSINESS DAYS*

Multi-task while avoiding over-application and ruined garments with this auto open clam heat press. Interchangeable platens allow you to heat print a variety of items of different shapes and sizes.

  • Opens automatically, preventing over-application and scorching
  • Clamshell design saves space
  • Wide opening allows easy layout and accommodates garments of varying thickness
  • Digital time, temperature, and pressure readouts
  • User friendly - most popular heat press

11" x 15" $1,755
16" x 16" $2,225
16" x 20" $2,630



Features

  • Patented Magnetic Auto Open Feature.
  • 3/4" thick non-stick coated upper platen.
  • Patented Magnetic Assist Lock Down.
  • Interchangeable lower platens (optional).
  • Platinum RTD heat sensor.
  • Cast-in tubular heating element every 2" to ensure the absence of cold spots.
  • Over-center pressure adjustment.
  • UL/ULC/CE/ROHS approved.
  • Temp. range 205° - 420°F.
  • °F or °C available.
  • 11 x 15 Electrical Options:
    120 v; 8.3 amps; 1000 w
    240 v; 4.5 amps; 1000 w
  • Must have designated circuit breaker
  • 16 x 16, 16 x 20 Electrical Options:
    120 v; 15 amps; 1800 w
    240 v; 7.5 amps; 1800 w

    • Actual Weight:
      11 x 15: 59 lbs
      16 x 16: 77 lbs
      16 x 20: 87 lbs
    • Shipping Weight:
      11 x 15: 72 lbs
      16 x 16: 90 lbs
      16 x 20: 100 lbs
    • Dimensions:

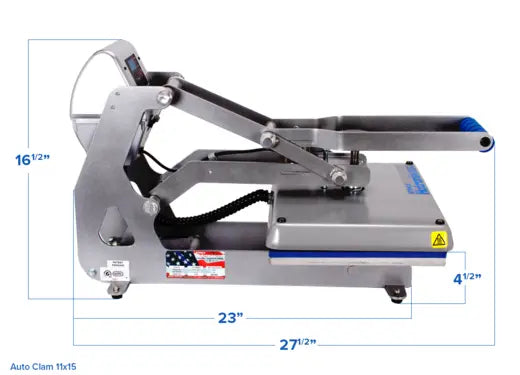

      11 x 15 model: 28" x 16" x 17"

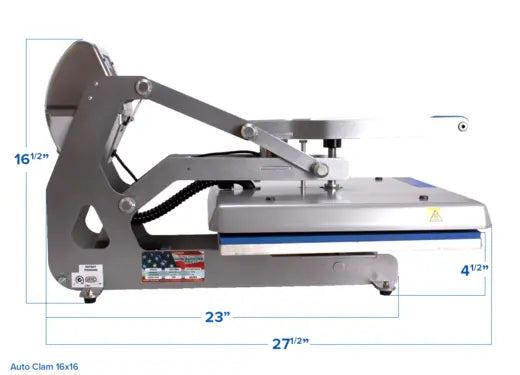

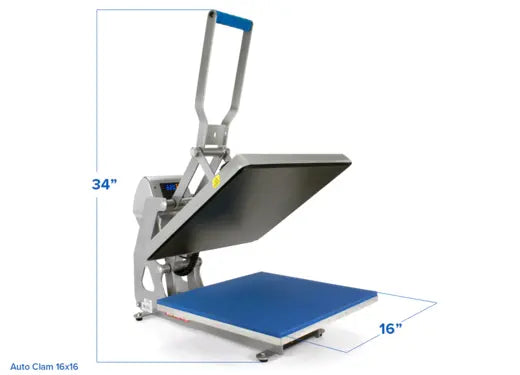

      16 x 16 model: 28" x 17" x 17"

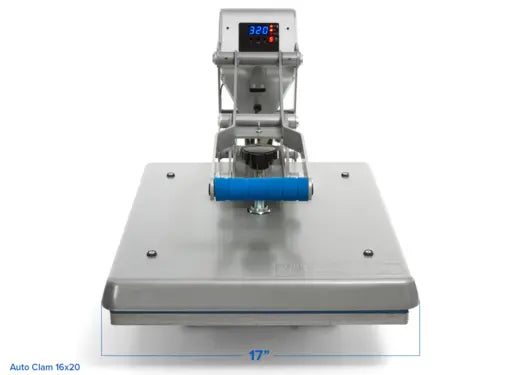

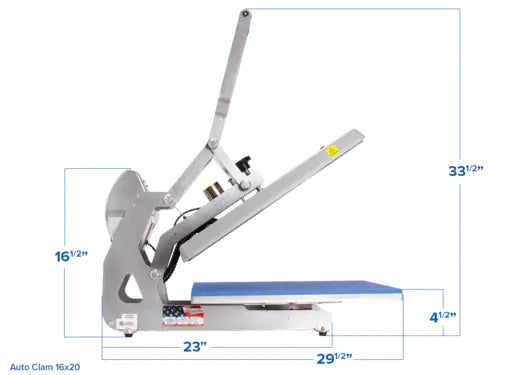

      16 x 20 model: 29" x 17" x 17"
    • Shipping Dimensions: 36" x 25" x 21" for all models

  • Warranty

    • Lifetime Warranty on Heating Element
    • 5 yr on Framework
    • 2 yr on Circuit board
    • 1 yr parts/labor
